Analysis
After downloading the file scan26.zip, we proceeded to an integrity check process before and after unzipping the file. The ouput of the commands below was compared to the digests of scan26 and scan26.zip published on the challenge page.
| $ md5sum scan 26 $ md5sum scan26.zip |
Then we tried to identify the type of the file scan26 using the linux command below :
$ file scan26 |
The file seens to be an image of a disk and may be a bootable disk. To identify exactly the type of the disk we tryed the linux command strings to extract readable strings from the disk content :
$ strings scan26 "RVRbIHC |
According to the bold strings the disk seems to contain a fat12 formatted file sytsem, so it represents the image of a floppy disk.
Two other informations has been identifed from the output of the command strings. The first one is pw=help that seems to be a hidden password. The second one is John Smith's Address: 1212 Main Street, Jones, FL 00001 and seems to be John Smith's address (probable answers for questions 1 and 2).
$ strings scan26 [remaining data] h%ad |
Now let's go inside the floppy disk to identify the files it contains. Using the linux command hexdump (or khexedit if you feel better with graphical tools), we start the analyse of the fat12 file system.

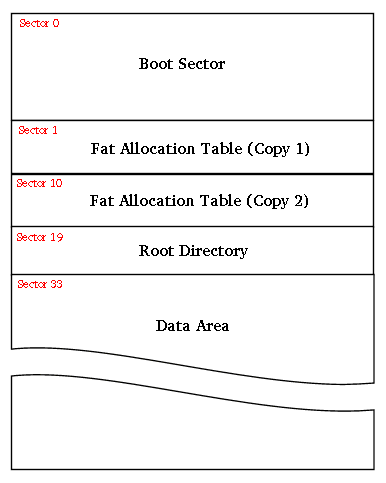

The Fat12 as specified by the figure below contains a boot sector (sector 0), a fat allocation table (9 sectors starting from sector 1), a second copy of the fat allocation table (9 sectors starting from sector 10), a root directory (14 sectors from sector 20) and the area where data is supposed to be stored (starting at sector 33).
Looking to the hexdump result, the two copies of the fat as well as the root diectory do not contain any entry. Thus it appears that the floppy disk does not contain any data. However, the data area seems to contain information that we will try firstly to identify and then to extract.
| Boots Sector (sector 0) | ||
| 00000000 00000010 00000020 00000030 00000040 00000050 00000060 00000070 00000080 00000090 000000a0 000000b0 000000c0 000000d0 000000e0 000000f0 00000100 00000110 00000120 00000130 00000140 00000150 00000160 00000170 00000180 00000190 000001a0 000001b0 000001c0 000001d0 000001e0 000001f0 |
eb 3e 90 22 52 56 52 62 49 48
43 00 02 01 01 00 02 e0 00 40 0b f0 09 00 12 00 02 00 00 00 00 00 00 00 00 00 00 00 29 44 06 da 16 4e 4f 20 4e 41 4d 45 20 20 20 20 46 41 54 31 32 20 20 20 f1 7d fa 33 c9 8e d1 bc fc 7b 16 07 bd 78 00 c5 76 00 1e 56 16 55 bf 22 05 89 7e 00 89 4e 02 b1 0b fc f3 a4 06 1f bd 00 7c c6 45 fe 0f 8b 46 18 88 45 f9 fb 38 66 24 7c 04 cd 13 72 3c 8a 46 10 98 f7 66 16 03 46 1c 13 56 1e 03 46 0e 13 d1 50 52 89 46 fc 89 56 fe b8 20 00 8b 76 11 f7 e6 8b 5e 0b 03 c3 48 f7 f3 01 46 fc 11 4e fe 5a 58 bb 00 07 8b fb b1 01 e8 94 00 72 47 38 2d 74 19 b1 0b 56 8b 76 3e f3 a6 5e 74 4a 4e 74 0b 03 f9 83 c7 15 3b fb 72 e5 eb d7 2b c9 b8 d8 7d 87 46 3e 3c d8 75 99 be 80 7d ac 98 03 f0 ac 84 c0 74 17 3c ff 74 09 b4 0e bb 07 00 cd 10 eb ee be 83 7d eb e5 be 81 7d eb e0 33 c0 cd 16 5e 1f 8f 04 8f 44 02 cd 19 be 82 7d 8b 7d 0f 83 ff 02 72 c8 8b c7 48 48 8a 4e 0d f7 e1 03 46 fc 13 56 fe bb 00 07 53 b1 04 e8 16 00 5b 72 c8 81 3f 4d 5a 75 a7 81 bf 00 02 42 4a 75 9f ea 00 02 70 00 50 52 51 91 92 33 d2 f7 76 18 91 f7 76 18 42 87 ca f7 76 1a 8a f2 8a 56 24 8a e8 d0 cc d0 cc 0a cc b8 01 02 cd 13 59 5a 58 72 09 40 75 01 42 03 5e 0b e2 cc c3 03 18 01 27 0d 0a 49 6e 76 61 6c 69 64 20 73 79 73 74 65 6d 20 64 69 73 6b ff 0d 0a 44 69 73 6b 20 49 2f 4f 20 65 72 72 6f 72 ff 0d 0a 52 65 70 6c 61 63 65 20 74 68 65 20 64 69 73 6b 2c 20 61 6e 64 20 74 68 65 6e 20 70 72 65 73 73 20 61 6e 79 20 6b 65 79 0d 0a 00 49 4f 20 20 20 20 20 20 53 59 53 4d 53 44 4f 53 20 20 20 53 59 53 80 01 00 57 49 4e 42 4f 4f 54 20 53 59 53 00 00 55 aa |
|ë>."RVRbIHC.....| |.à.@.ð..........| |......)D.Ú.NO NA| |ME FAT12 ñ}| |ú3É.Ѽü{..½x.Åv.| |.V.U¿"..~..N.±.ü| |ó¤..½.|ÆEþ..F..E| |ùû8f$|.Í.r<.F..÷| |f..F..V..F..ÑPR.| |Fü.Vþ¸ ..v.÷æ.^.| |.ÃH÷ó.Fü.NþZX»..| |.û±.è..rG8-t.±.V| |.v>ó¦^tJNt..ù.Ç.| |;ûråë×+ɸØ}.F><Ø| |u.¾.}¬..ð¬.Àt.<ÿ| |t.´.»..Í.ëî¾.}ëå| |¾.}ëà3ÀÍ.^....D.| |Í.¾.}.}..ÿ.rÈ.ÇH| |H.N.÷á.Fü.Vþ»..S| |±.è..[rÈ.?MZu§.¿| |..BJu.ê..p.PRQ..| |3Ò÷v..÷v.B.Ê÷v..| |ò.V$.èÐÌÐÌ.̸..Í| |.YZXr.@u.B.^.âÌÃ| |...'..Invalid sy| |stem diskÿ..Disk| | I/O errorÿ..Rep| |lace the disk, a| |nd then press an| |y key...IO | |SYSMSDOS SYS..| |.WINBOOT SYS..Uª| |
| Fat (Copy 1) | ||
| 00000200 00000210 |
f0 ff ff 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |
|ðÿÿ.............| |................| |
| * | ||
| Fat (Copy 2) | ||
| 00001400 00001410 |
f0 ff ff 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |
|ðÿÿ.............| |................| |
| * | ||
| Root Directory | ||
| 00002600 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | |................| |
| * | ||
| Data Area | ||
| 00004200 00004210 00004220 00004230 00004240 |
ff d8 ff e0 00
10 4a 46 49 46 00 01 01 01 00 48 00 48 00 00 ff fe 00 4c 11 53 6e 55 47 b3 2d 44 35 d2 23 66 6b 1d bd 76 3c 89 68 69 d4 17 60 e8 a8 a4 2d 09 59 19 ab 28 1a de 5e 98 60 c2 a5 c3 a7 ae 24 d0 3d 16 03 47 6a 60 90 da e1 44 f9 cc |
|ÿØÿà..JFIF.....H| |.H..ÿþ.L.SnUG³-D| |5Ò#fk.½v<.hiÔ.`è| |¨¤-.Y.«(.Þ^.`Â¥Ã| |§®$Ð=..Gj`.ÚáDùÌ| |
| [Ramining Sectors ...] | ||
The existence of the following strings JFIF and BMv, in the output of the strings command, reveals the existence of one jpeg file and one BMP file.
$ strings scan26 [Ramaining Data] |
Let's Try to extract the two files now.
JPEG file extraction
According to the JPEG file structure, a JPEG file begins with the two bytes market 0xFFD8 followed by the JFIF marker 0xFFE0. The end of a JPEG file is announced by the following two bytes marker 0xFFD9.
If we find the 0xFFD8 and the 0xFFD9 markers into the floppy disk dump, we will be able to compute the first and last cluster of the JPEG file.
Using khexedit we find that the 0xFFD8 marker is located in the offset 4200 and the 0xFFD9 marker is located in offset C158. In terms of sectors the JPEG file starts in sector 33 and terminates in sector 96 (we only need to devide the offset by 200 which corresponds in decimal to 512 the size of sector in bytes). The number of sector used by the JPEG file is 96 - 33 +1 = 64.
To extract the JPEG file the following linux command was executed :
$ dd if =scan26 skip=33 count=64 bs=512 of=image.jpg |
Click to find the extracted image.jpg.
Now, we tried to guess if there is some information hidden inside the recoverd JPEG image. However Stegaboraphy is a technique taht permit to hide a secret message within an ordinary messge (in almost case it is an image) so no one suspects it exists without knowing the used algorithm and secret key.
Stegdetect is a powerfull tool that permit to detect the presence of steganography in the images. To use it we proceed by:
$ ./stegdetect image.jpg image-jpg : invisible[7771](***) appended(166)<[nonrandom][data][................]> |
The output command show that a steganography techniques has been used to probably hide some usefull informations.
BMP file extraction
Let's do now the same thing with the BMP file. According to the specification of the file BMP structure, that format starts with the following 2 byte size value 0x424D (we have to read it as 0x4D42 corresponds to the decimal value 19778). This value was found in offset 0xC200. The next 4 bytes, starting in the offset 0xC202, specify the size of the BMP file in bytes. We need to read these bytes from right to left to get the correct file size wich is 0011CC76 bytes or 1166454 bytes in decimal. The last offset of the file can be computed using this formula 0xC200 + 0x0011CC76 - 0x1 = 0x128E75.
In trems of sectors the BMP file starts in sector 0xC200/0x200 = 0x61 = 97 in decimal and terminates in sector 0x128E75/0x200 = 0x947 = 2375 in decimal. The BMP file starts in the first sector after the JPEG file. The number of sectors used by the BMP file is 2375 - 97 +1 = 2279.
To extract the BMP file the following linux command was executed :
$ dd if =scan26 skip=97 count=2279 bs=512 of=image.BMP |
Click to find the extracted image.bmp . (Be careful this is a big file so you can find here a smaller one in jpeg format)
images analysis
The BMP image shows that Jimmy Jungle is currently hiding in the following addres 22 Jones (Answer form the question number 4).
The exact location where Jimmy Jungle received the drugs is dunny's 12 pier Boat Lunch. This information appears in both the JPEG and BMP file (Answer for question number 3).
Bonus Question Analysing
The hexadecimal dump of the floppy disk content shows that only the root directory sectors have been "zeroized", and the two fat tables execept the first 3 bytes of each one of them. The boot sector and the data area remain still conatin data. The process used here seems to be a quick format. To confirm that idea we have quick formated a second floppy disk, and we have obtained the same result.
Tools
khexedit
file
strings
dd
hexdump
